Model |
|

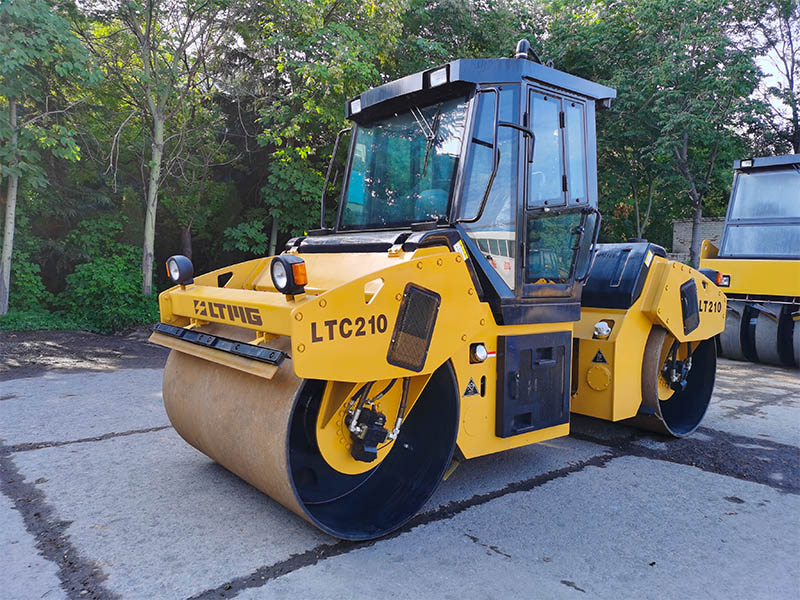

LTC 210 |
|
Massa operasi |
kg |
10000 |
|
Beban gandar depan |
kg |
5000 |
|
Beban gandar belakang |
kg |
5000 |
|
Beban linier statis |
N/cm |
238 |
|
Bentuk bingkai |
|
Tipe garpu |
|
Jarak gerakan kepiting |
mm |
±170 |
|
Kapasitas tangki air |
L |
2*400 |
|
Kapasitas tangki bahan bakar |
L |
80 |
|
Kapasitas tangki hidrolik |
L |
65 |
|
Amplitudo getaran oriental |
mm |
0.67/0.34 |
|
Frekuensi getaran |
Hz |
45/50 |
|
Gaya sentrifugal |
Kn |
90*2/69*2 |
|
Kecepatan perjalanan |
Km/h |
0-10 |
|
Memutar jari -jari |
mm |
6000 |
|
Kemampuan kelas |
% |
40 |
|
Diameter drum |
mm |
1150 |
|
Lebar drum |
mm |
1730 |
|
Ketebalan pelek drum |
mm |
20 |
|
Dasar roda |
mm |
3217 |
|
Dimensi keseluruhan |
mm |
4558*1840*2674 |
|
Ground clearance |
mm |
258 |
|
Model Diesel |
|
Cummins4bt3.9 |
|
Daya diesel |
KW |
75 |
|
Kecepatan diesel |
R/mnt |
2400 |
